NO MIDDLEMAN.
NO RETAIL STORE MARKUPS.
We manufacture and sell our own products, giving you to access direct pricing, custom engineering services and hassle-free bulk orders. We have over 30 years of manufacturing and assembly experience with solutions for a very wide range of industries.
Any project. Big or small. SteelFront delivers.
STEELFRONT PRODUCTS ARE
ENGINEERED AND MANUFACTURED
ON-SITE
Built-to-last with durability, safety and performance in mind.
-

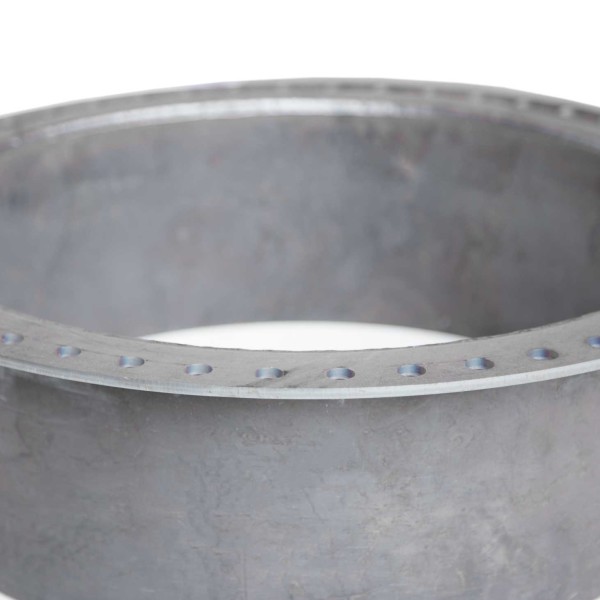

Storage Tank Manway, Round, Full Customization
Storage Tank PartsPrice range: $507.58 through $2,881.64
Storage Tank Manway, Round, Full Customization
Storage Tank PartsWe provide storage tank manways ranging from 16" up to 36" in diameter, and of variable neck and flange thickness. Matching manway covers are sold separately and match all SteelFront manways. SteelFront is the only supplier that allows you to modify all aspects of the manway itself, including diameter, neck length and thickness, and flange thickness and hole placement. This allows for true, full customization based on your needs. Choose from 864 possible combinations to get your job completed properly and on-time.Price range: $507.58 through $2,881.64 -
Bar Grating Saddle Clip
Steel Walkways and StairwaysSaddle clips are used to secure a variety of parts to our standard bar grating. The double-lipped design fits securely on any part of the grating itself, allowing for the assembly of a range of components. A standard 3/8" hex bolt with a flange nut is used in the center to attach other parts (SOLD SEPARATELY).$0.49 -
Formed-Grated Tread Step, Bolt-On, for Steel Stairway
Steel Walkways and StairwaysPrice range: $28.74 through $42.93
Formed-Grated Tread Step, Bolt-On, for Steel Stairway
Steel Walkways and StairwaysSteel stairs with formed-grated treads offer a solid construction alternative to grated stairs, and are commonly used in mixed weather climates. The bolt-on version features side panels with holes for bolting to the ladder. A solid construction ensures long life and sturdy support. Bolt-on formed-grated steps are built from a sturdy 12 gauge material and available in one size: 9" wide X 26" in length and 1 3/8" tall and in raw steel, pre-galvanized or hot dip galvanized.Price range: $28.74 through $42.93 -

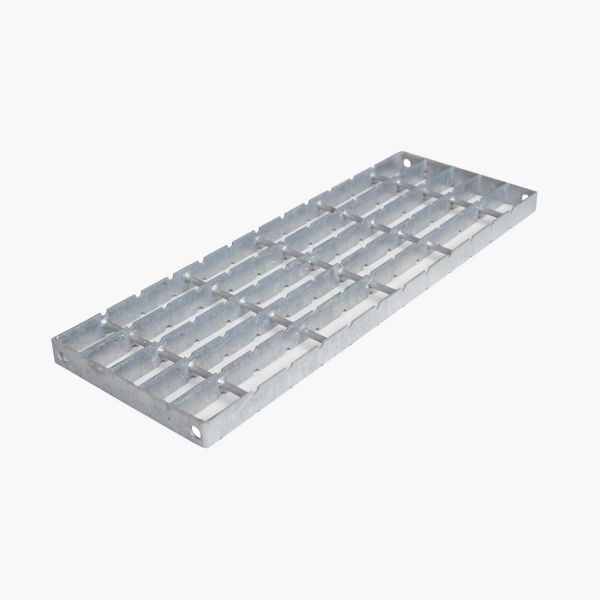

Bar Grating Tread Step, Bolt-On, for Steel Stairway
Steel Walkways and StairwaysPrice range: $33.70 through $43.08
Bar Grating Tread Step, Bolt-On, for Steel Stairway
Steel Walkways and StairwaysBar grating stairs offer superior grip under cold weather conditions, allowing snow to fall through the step itself and provide a safe climbing surface. The bolt-on version of our grated step features side panels with holes for bolting to the ladder. Bolt-on grated steps are built from a sturdy 11 gauge material and available in one size: 9" wide X 26" in length and 1 1/4" tall and in either raw steel or hot dip galvanized. [spb_message color="alert-info" width="1/1" el_position="first last"] Product requires 3-5 business days of lead time. [/spb_message]Price range: $33.70 through $43.08 -
D-Ring Lug, Welded
Storage Tank PartsSteelFront's standard D-Ring Lug is welded to a 1/4" baseplate for ease of mounting.Price range: $27.32 through $47.12 -
Manway Fiberflex Gasket for Storage Tanks
Storage Tank PartsFiberflex gaskets are 1/8" thick and shaped to line all SteelFront standard round manway sizes, ensuring a perfect fit. Simply select the same dimension of your selected manway(s). All gaskets are double punched, allowing for use in both single or double punched manway configurations.Price range: $30.25 through $98.21 -
Rectangular Manway Cleanout Frame for Storage Tanks
Storage Tank PartsBuilt for storage tanks, the rectangular manway frame (also known as a cleanout frame) attaches to the tank, on which our standard cover attaches. All frames are robotically welded to create a full and seamless seal and shipped as an unfinished (raw steel) product. We feature a standard 28" X 40" outer dimension with a 24" X 36" inner dimension. The structural angle used in the frame has a profile of 2" X 3" X 1/4". Covers may be purchased separately, available in both 1/4" and 3/8" thicknesses.$85.72 -

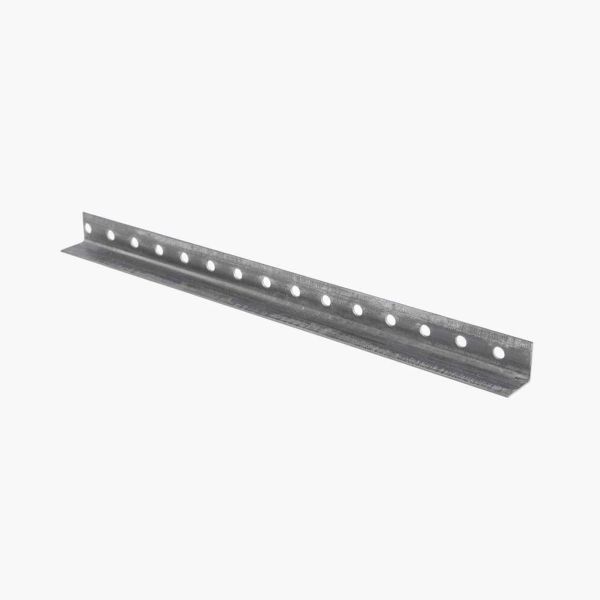

Angle Iron, Roll-Formed, Punched for 1/2″ Bolt
Steel AngleThis version of our roll-formed angle allows for ease-of-construction with holes punched on either one or both legs, and for use with 1/2" bolts (holes measure .563"). It is our most flexible and widely used angle, fitting well with our walkway and stairway parts. “Single Punch” refers to one leg with punched holes (shown in images). “Double Punch” refers to both legs having holes. Both single and double punch variations are done so with holes 2″ apart (from center). This angle is available in variable lengths and in both galvanized or raw steel formats. [spb_message color="alert-info" width="1/1" el_position="first last"] Product ships in 3-5 business days. [/spb_message]Price range: $1.57 through $92.59
